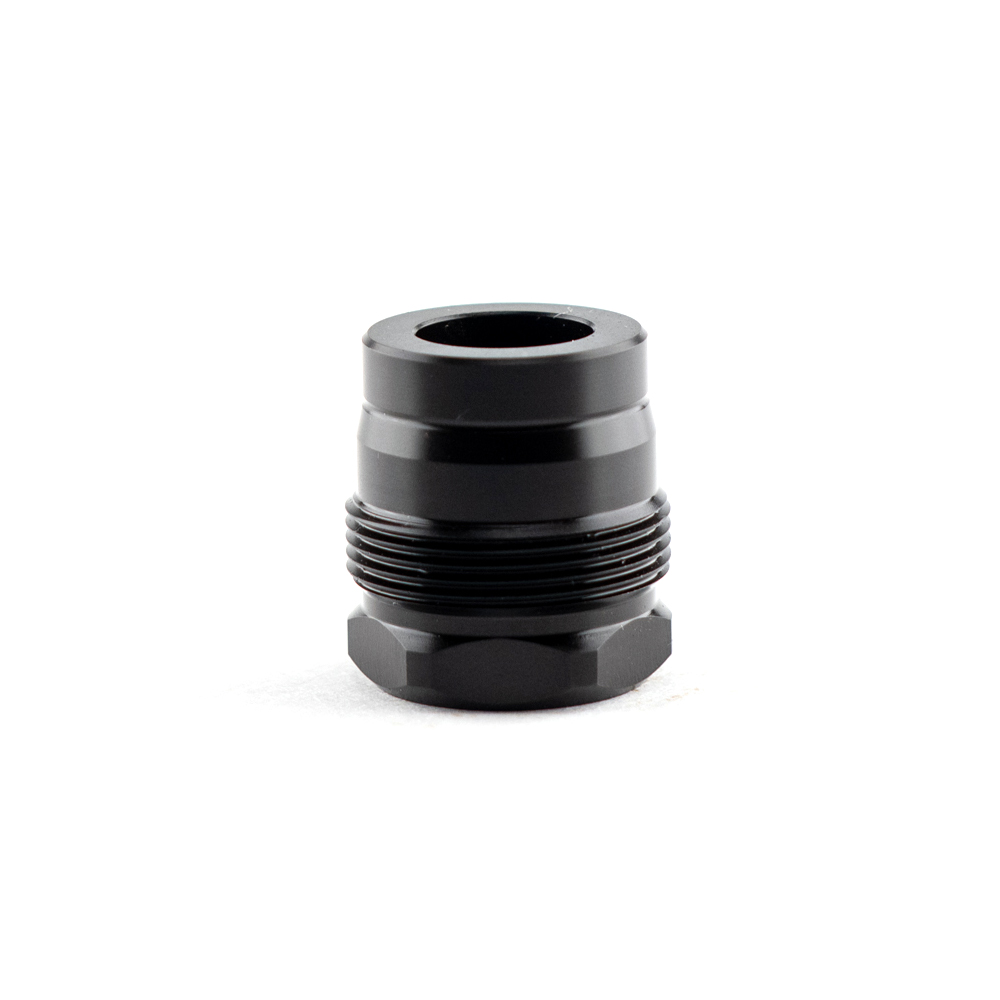

The Rearden Mini is a compact muzzle device for barrels threaded 11/16×24 with a 0.571″ bore, finished in black nitride. It is machined from 17-4 PH H900 steel with a black nitride surface rated at 67 HRC. As a Plan B style device it threads into Rearden Atlas and Atlas XL suppressor mounts, so the same device can stay on the barrel with or without a suppressor attached.

At .968″ long it is the shortest Rearden device, with about 0.050″ of overrun on the standard Atlas mount and none on the Atlas XL. Shims are not included.

Install on clean threads, dry fit with and without shims, use Rocksett and check alignment with an alignment rod before mounting a suppressor.

Specifications

• Brand: Rearden
• Model: Mini
• UPC: 850041491448
• Type: Muzzle Device
• Thread Pitch: 11/16×24
• Bore: 0.571″
• Material: 17-4 PH H900
• Finish: Black Nitride
• Weight: .83 oz
• Length: .968″
• Length Added: 0.343″
• Mount Compatibility: Rearden Atlas, Atlas XL and Plan B style mounts
