Rix Optics

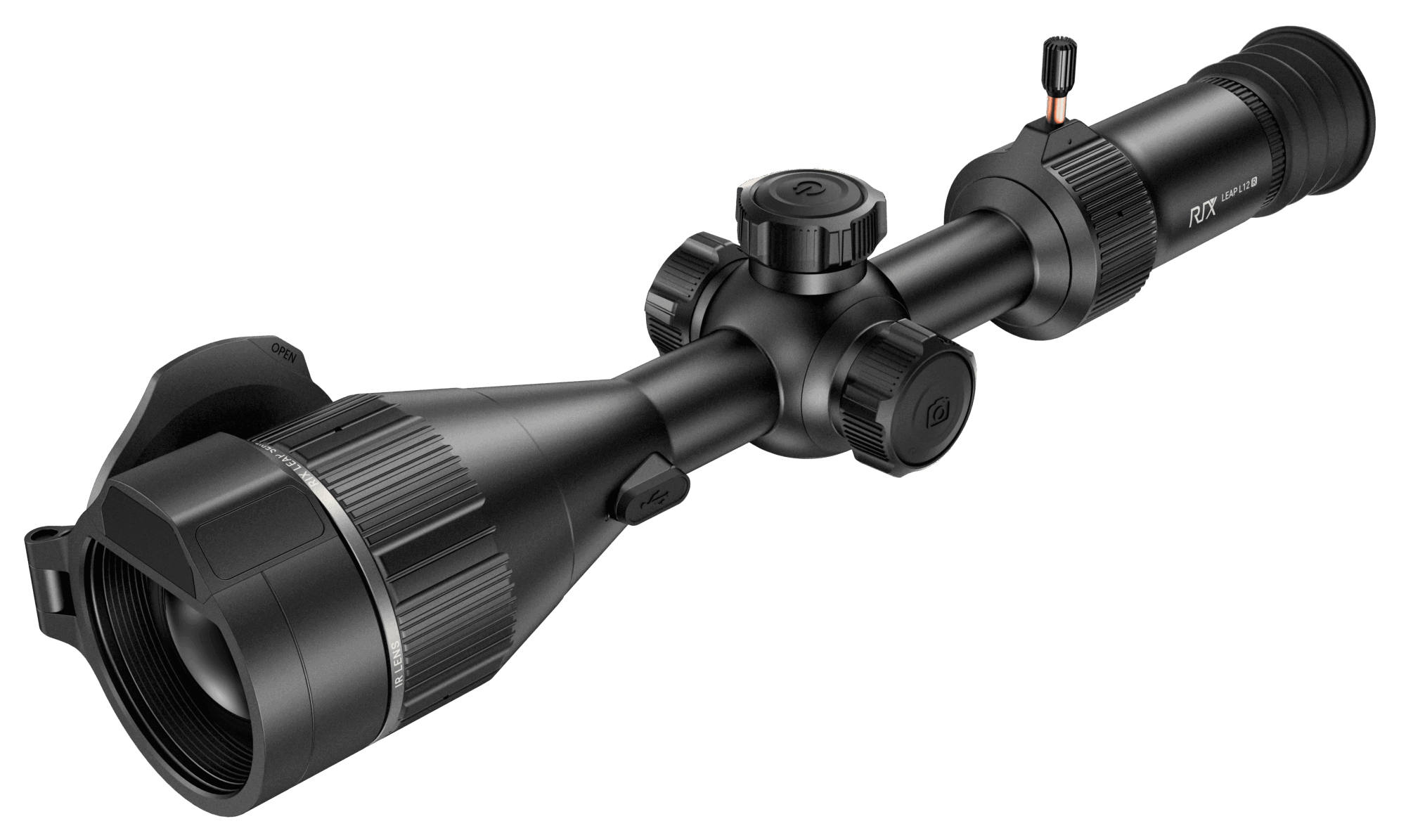

Image clarity often suffers in tough conditions but the premium 1280 × 1024 thermal sensor with NETD < 15mK in the LEAP L12R maintains sharp detailed images. Paired with an F1.0/60mm lens and a 60Hz refresh rate it captures every scene with exceptional sensitivity and precision. – Sensor Specifications – Type VOx Uncooled – Resolution pixels 1280×1024 – Pixel Pitch um 12 – NETD mK <15 – Frame Rate Hz 60 – Optical Specifications – Objective Lens mm 60 – Optical Zoom x 2.0 to 6.0 – Field of View (H×V) 14.6°×11.7° – Digital Zoom x 1 to 8 – Eye Relief mm 50 – Diopter Adjustment D -5 to +5 – Detection Range m/yd 3100/3390 – Display Specifications – Type AMOLED – Resolution pixels 2560×2560 – Laser Rangefinding – Measurement Range m/yd 1200/1312 – Measurement Accuracy m/yd ±1/±1.09 – Video Recorder – Video / Photo Resolution pixel 1280×1280 – Video / Photo Format .mp4 / .jpg – Built-in Memory GB 64 – Environmental Characteristics – Degree of Protection IP code IP67 – Operating Temperature Range -20~ +50/-4 ~ +122 – Connections and Compatibilities – Battery Type 18650 – Operating Time on Battery Pack (at t=72°F) h 6.5 – External Power Supply V 5V (Type-C USB) – Max Recoil Power on Rifled Weapon (Eo) g/Joules 1000/6000 – Compatible Mounts 30mm rings – Weight & Size – Dimensions inch 15.5×3.8×3.3 – Weight g/lb 1270/2.8
