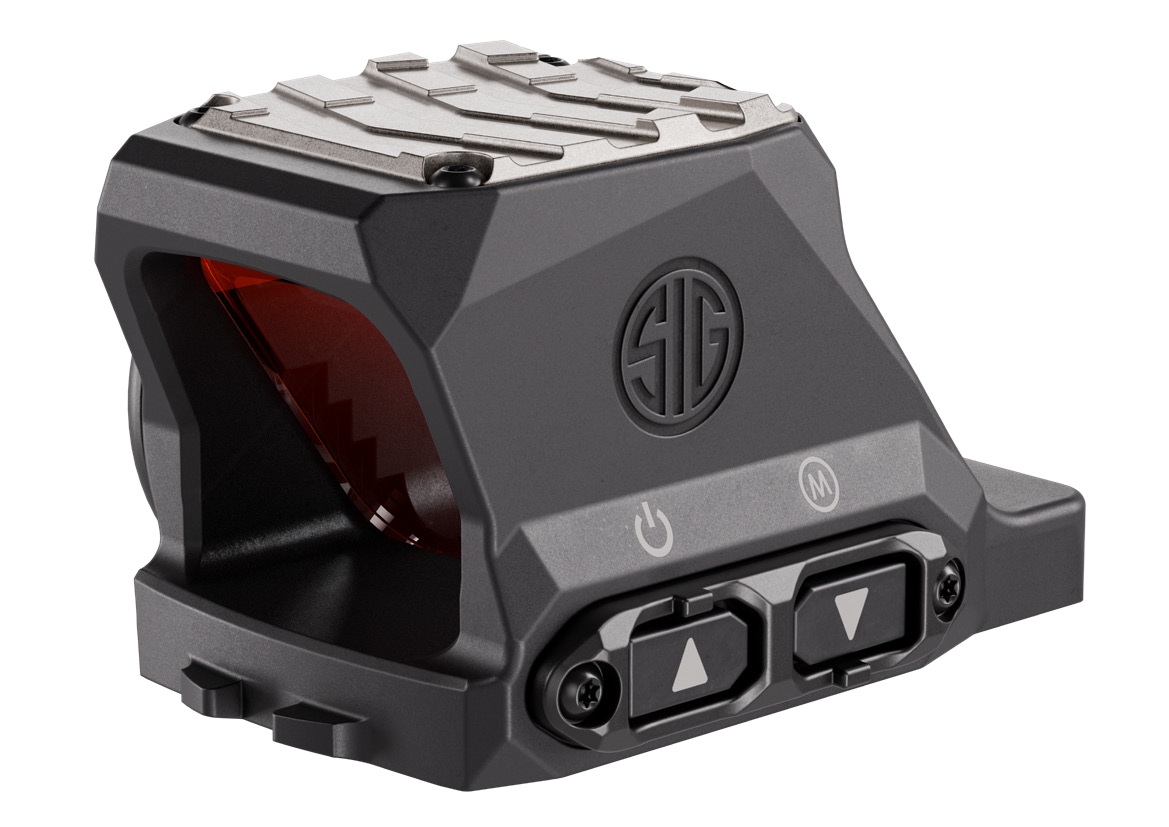

The SIG Sauer XRAY5 SIG-LOC Pro is an enclosed reflex sight with a 3.5 MOA red dot and a SIG-LOC Pro mounting footprint. It uses a solid-state 225-pixel LED matrix with no internal moving parts and a roof-mounted aspheric lens behind flat front glass.

Windage and elevation are set digitally with button presses or the XRAY5 app, with 80 MOA of travel each way. It has 15 brightness settings (13 daylight and 2 night vision), motion-activated illumination, a side-loading CR2032 battery rated up to 10,000 hours at medium brightness, a 7075 aluminum housing with a titanium lens shield, and an IPX-8 rating to 40 meters.

Specifications

• Brand: SIG Sauer
• Model: XRAY5 SIG-LOC Pro
• Manufacturer Part #: SOX55300
• UPC: 798681746996
• Reticle: 3.5 MOA Red Dot
• Footprint: SIG-LOC Pro
• Magnification: 1x
• Clear Aperture: 24 mm (diagonal)
• Battery: CR2032, side loading
• Length: 1.9 in (48.26 mm)
• Height: 1.17 in (29.72 mm)
• Weight with Battery: 1.45 oz (41.11 g)
• Waterproof Rating: IPX-8 to 40 meters
• Finish: Black Anodized
